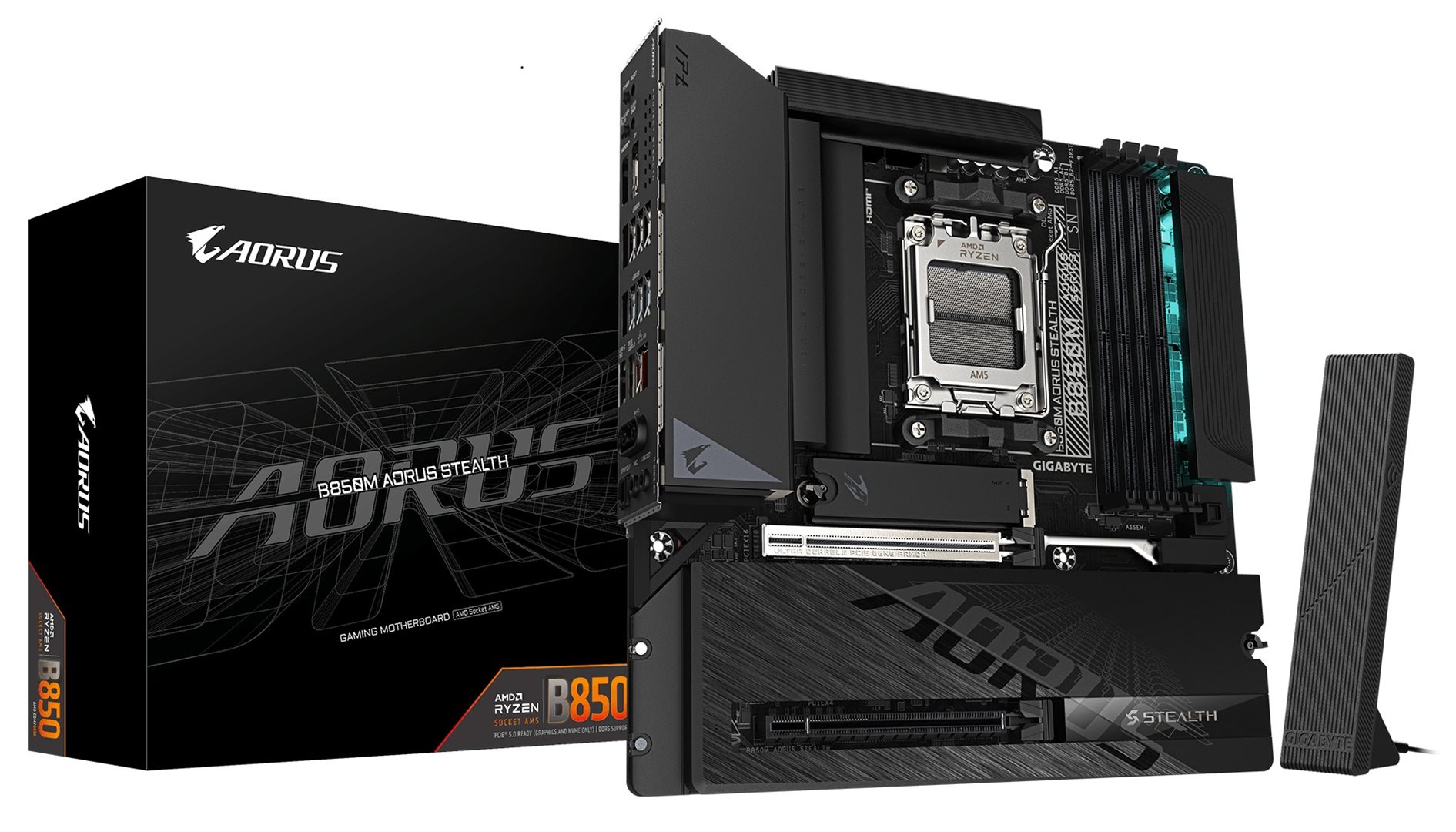

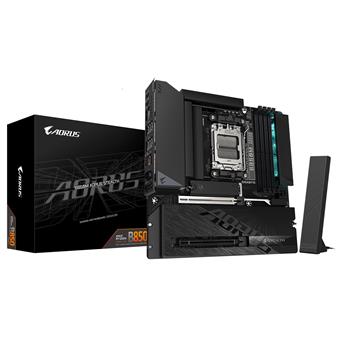

Gigabyte B850 AORUS STEALTH/ AM5/ mATX

Gigabyte B850 AORUS STEALTH

Chipset: AMD B850
Rozmerový formát: Micro ATX Form Factor; 24.4cm x 24.4cm
Podpora pre procesory:

• AMD Ryzen™ 9000 Series Processors
• AMD Ryzen™ 8000 Series Processors
• AMD Ryzen™ 7000 Series Processors

Pätica procesora: AM5

Pamäť:

• Podpora pre DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s pamäťové moduly.
• 4x DDR5 DIMM sloty podporujúce až 256GB (64GB každý slot) pamäte
• Dual channel memory architecture
• Podpora pre non-ECC Un-ubffered DIMM 1Rx8/2Rx8/1Rx16 moduly
• Podpora pre AMD EXPO a XMP

Grafické porty:

Integrated Graphics Processor with AMD Radeon™ Graphics support:

• 1 x HDMI port, podpora a maximum resolution of 4096x2160@60 Hz
• 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz

Zvuková karta:

• Realtek® ALC1220 CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel
• Support for S/PDIF Out

Ethernet: Realtek® 5 GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
WLAN + Bluetooth: Realtek® Wi-Fi 7 RTL8922AE

• 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
• BLUETOOTH 5.4
• Support for 11be 160MHz bezdrôtový štandard

Rozširujúce sloty:

1 x slot PCI Express x16 (PCIEX16), integrovaný v CPU:

• AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
• AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
• AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

Chipset:

• 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

RAID radič: RAID 0, RAID 1, RAID 5, RAID 10

Úložný priestor:

1 x M.2 konektor (M2A_CPU), integrovaný v CPU, supporting Socket 3, M kľúč, typ 2280 SSDs:

• AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
• AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
• AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

1 x M.2 konektor (M2B_CPU), integrovaný v CPU, supporting Socket 3, M kľúč, typ 2280 SSDs:

• AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
• AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
• AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs

1 x M.2 konektor (M2C_SB), integrovaný v chipsete, supporting Socket 3, M kľúč, typ 2280 PCIe 4.0 x4/x2 SSDs

2 x SATA 6Gb/s konektory

USB:

CPU:

• 3 x USB 3.2 Gen 1 ports on the back panel

CPU+USB 2.0 Hub:

• 4 x USB 2.0/1.1 ports on the back panel

Chipset:

• 2 porty USB Type-C® s USB 3.2 Gen 2 support (1 port na zadnom paneli, 1 port dostupný prostredníctvom vnútorného USB headeru)
• 1 x USB 3.2 Gen 2 Type-A porty (red) on the back panel
• 3 x USB 3.2 Gen 1 porty (1 port na zadnom paneli, 2 porty dostupné cez interný USB header) dostupnú cez vnútorný USB header
• 4 x USB 2.0/1.1 ports dostupná cez vnútorné USB headers

Interné porty:
Napájanie

• 1× 24-pin ATX main power connector
• 1× 8-pin ATX 12V power connector
• 1× CPU fan header
• 1× CPU fan / water cooling pump header
• 1× system fan header
• 1× system fan / water cooling pump header

Súvisiace s úložiskom

• 3× M.2 Socket 3 connectors
• 2× SATA 6Gb/s connectors

USB

• 1× USB Type-C header, USB 3.2 Gen 2
• 1× USB 3.2 Gen 1 header
• 2× USB 2.0/1.1 headers

Ostatné

• 3× addressable RGB Gen2 LED strip headers
• 1× RGB LED strip header
• 1× front panel header
• 1× front panel audio header
• 1× Trusted Platform Module header
• 1× Clear CMOS jumper
• 1× reset jumper

Porty na zadnom paneli:

• 1 x Q-Flash Plus button
• 1 x Clear CMOS button
• 1 x power button
• 1 x reset button
• 1 x HDMI port (Note)
• 1 x DisplayPort (Note)
• 2 x antenna connectors (2T2R)
• 1 x USB Type-C® hlava, s USB 3.2 Gen 2 support
• 1 x USB 3.2 Gen 2 Type-A ports (red)
• 4 x USB 3.2 Gen 1 ports
• 4 x USB 2.0/1.1 ports
• 1 x RJ-45 port
• 1 x optický S/PDIF Out connector
• 2 x audio jacks

BIOS: RAID 0, RAID 1, RAID 5, RAID 10

H/W Monitorovanie

• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Fan fail warning
• Fan speed control

OS: Podpora pre Windows 11 64-bit
